SALTO Design XS - Mullion Wall Reader

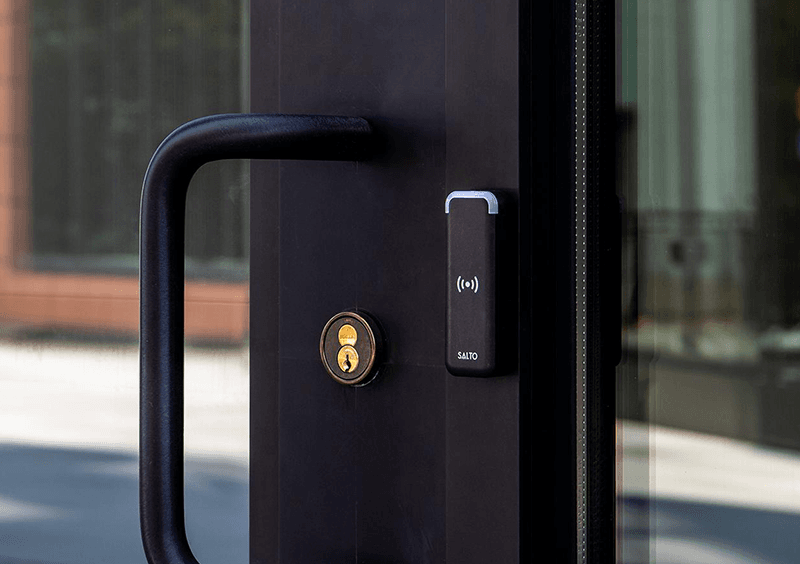

The SALTO Design XS Mullion Wall Reader for flush mounting has been specially designed to fit lifts, sliding doors or electronic gate doors that have a narrow profile frame and where there is insufficient space to install a standard wall reader.  Combined with the SALTO smart access controller, it facilitates the integration of the wall reader with any SALTO smart access platform.

Features

• Compact slim reader module design reader.
• Specially designed for narrow or aluminum profile doors, making the installation quick and easy with minimal impact.
• Fully integrated with the SALTO XS4 platform.
• Virtual network capable through SALTO SVN data-on-card technology.
• Modern aesthetic design with green/red and blue clear LED color optical signal.
• Blue light indicates that the user key update is in progress through SALTO Virtual Network technology.
• Acoustic and optical signaling, dual color green/red to indicate access authorization.
• Can be used both indoor and outdoor, design for optimum weather resistance: Electronics potted in resin.

Technical Characteristics

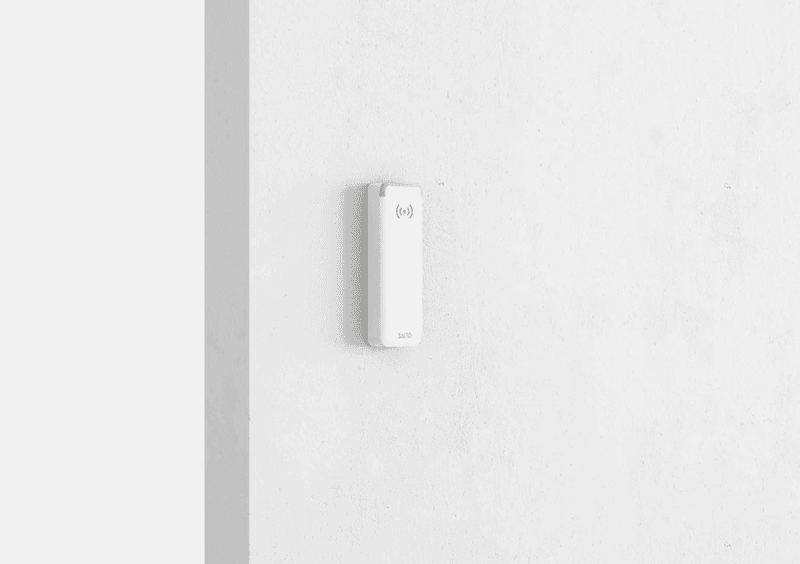

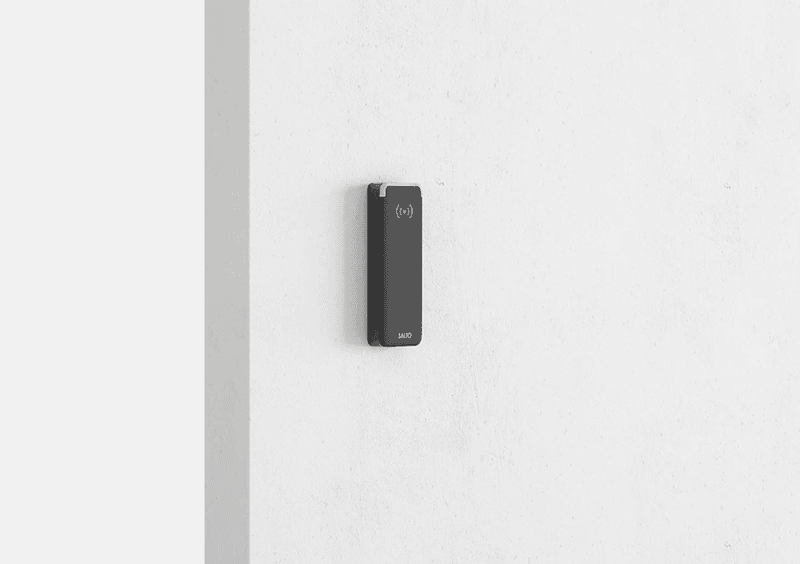

• The wall mounting is very easy. The width is less than 40mm which make it compatible with standard door frames.
• To be used in combination with controllers (CU42xxx or SALTO KS controllers (CU41xxx).
• Connection to the door controller: 4 wires.
• Designed to work with an online SVN access control platform, with a stand-alone system or cloud-based SALTO KS access control platform.
• Maximum distance between the door controller and the wall reader 400m1 using a twisted pair cable.
• Reading distance from 35 to 50mm depending on the RFID technology.
